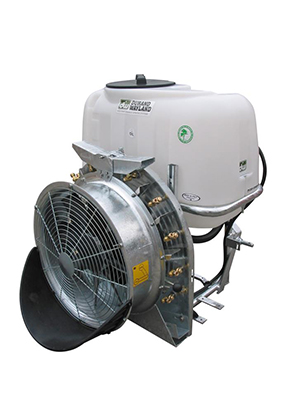

50 Gallon Sprayers
Standard Features
-
- Hot dipped galvanized metal frame
- 50 gallon poly tank
- Jet agitation
- Tank level sight gauge tube
- Bertolini PA530 14.3 gpm @ max 500 psi pump
- 10 single rollover nozzles with check valve and individual shut off
- Five way controls with pressure regulator
- Oil filled pressure gauge
- One speed gearbox with neutral
- 24” fan with 8 blades
- Crating included on base unit
- Adjustable guide vanes
- Rear rubber dirt shield
Dimensions
| Length | Width | Height | Weight (lbs) |
| 39" | 40" | 46" | 350 |
Standard Units
| Part Number | Model | Gallon | PTO HP Required | Fan | Pump |
| 16-4924 | CDP14P50P AIR 24 (includes 12-6780 nozzle kit) | 50 | 20-30 | 24" | Bertolini PA530 |
Equipment Option
| Part Number | Description |
| 16-4929 | Vineyard head for 24" fan includes 12-6783 nozzle kit (not installed) |
| 16-5064 | Nozzle module for Vineyard deflector includes 12-6782 nozzle kit (not installed) |
| Miscellaneous | |
| 12-6819 | Electric spray controls (APL units) (not installed) |
